TITAN A790 PANTERA - Ryzen Threadripper Pro 9000 WX | Rendering & Simulations Workstation PC

Alternative Views:

Starting Price: $6,240.00

Availability: Usually Ships in 2 to 4 Weeks
Product Code: A790-PANTERA

Lead Time:

CORE COMPONENTS

Case:

Case Fans:

CPU / Processor:

CPU Cooling:

Motherboard:

Memory:

Power:

Operating Systems:

VIDEO & AUDIO

GPU Configuration Set 1:

GPU Configuration Set 2:

Video Capture:

Sound Card:

Monitor 1:

Monitor 2:

M.2 NVMe STORAGE

M.2 NVMe Drives Set 1:

M.2 NVMe Drives Set 2:

M.2 NVMe Drives Set 3:

M.2. RAID Setup:

SSD & SATA STORAGE

Hard Drives Set 1:

Hard Drives Set 2:

SATA-SAS RAID Controller:

SATA RAID Setup:

Storage Bay Configuration:

COMMUNICATIONS

NetWork:

USB Ports:

Wireless:

Mouse / Keyboard:

WARRANTY

Assembly:

TAA Compliance:

Warranty:

Extra Care:

FREE Gift:

Qty:

Technical Specs

Support

TITAN A790 PANTERA
AMD Ryzen Threadripper Pro 9000 WX 3D Rendering & Simulations Workstation PC up to 96 Cores

Brute Force
The A790 Pantera features the beautiful TITAN Chariot Rev. 3 Anodized Aluminum Mid Tower Case, designed in the USA.

Configurable with between 24 and 96 cores, thanks to the latest AMD Threadripper Pro technology, the A7 PANTERA will sink its claws into any CPU workload that benefits from multithreading. But don’t let that fool you into thinking it won’t also rip through single-threaded loads, with a maximum boost clock of 5.3GHz.

Silence is important to any stalking predator, and we’ve equipped our PANTERA with Noctua’s best high-performance yet quiet fans, along with one of their premium CPU coolers.

If you really want to be at the top of the food chain, then the all-new Chariot Rev. 3 chassis allows for truly terrifying possibilities. With room for a dual power supply, this kitty-cat is relentless and for ultimate performance, we can equip it with four RTX GPUs with full liquid cooling.

If memory bandwidth and performance is your priority, the A790 offers between 64GB and 265GB of overclocked 6400 Mhz memory, but if you need absolute precision instead, up to 2TB of ECC server memory is available paired with the right motherboard option.

Power House
As standard you get 1TB of blazing fast PCIe 5.0 SSD storage, and 4TB of enterprise-class mechanical drive storage, but the Panther’s belly can be expanded with up to 8TB NVME drives in the three slots, or multiple 20TB enterprise-grade drives.

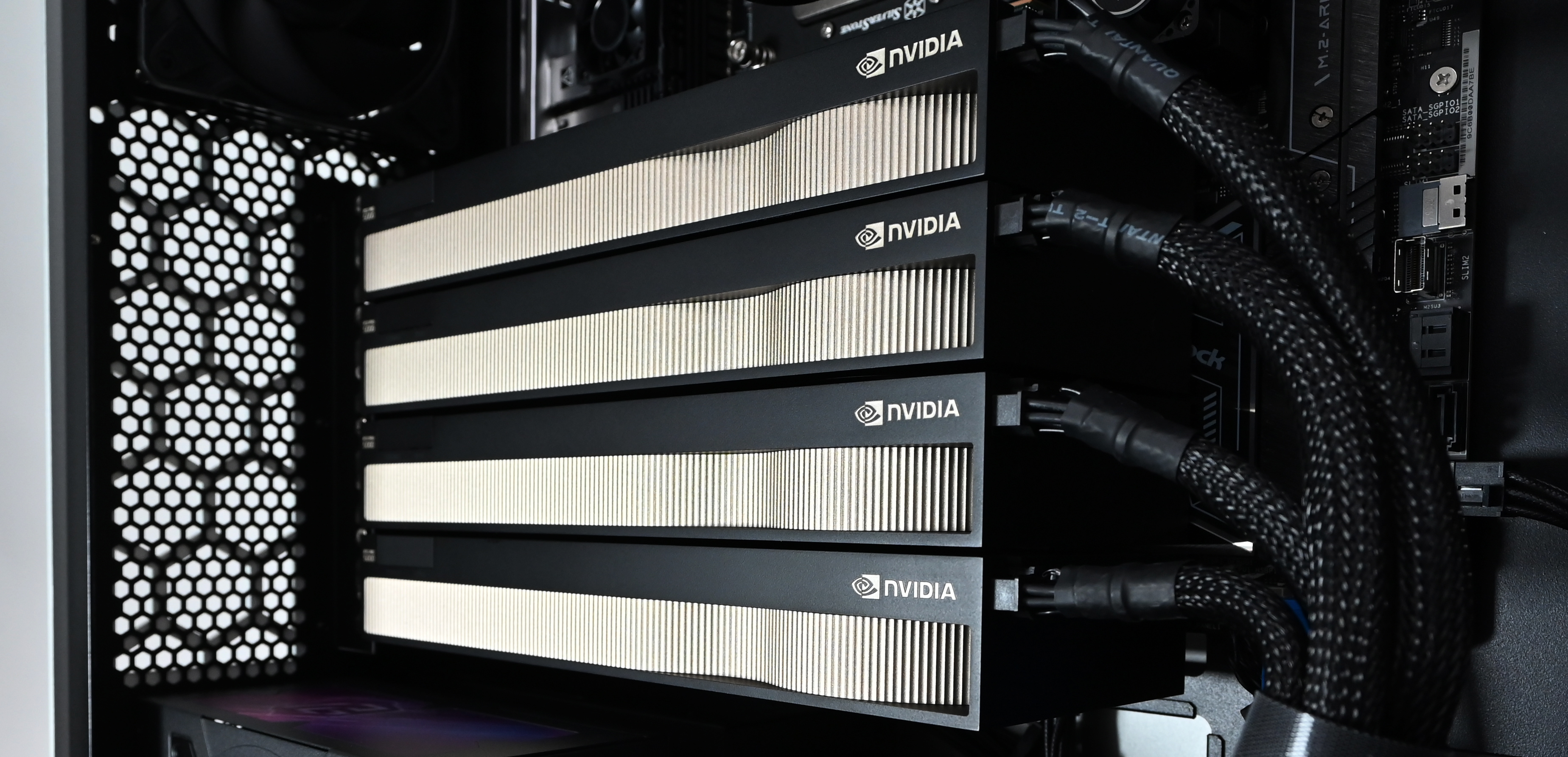

Multi GPUs

The A790 PANTERA will stop anyone in their tracks with looks alone, but it’s the rock-solid reliability, and endless performance potential that will make you embrace the power of the panther.

Backed by our peerless lifetime support and labor guarantee, and two years parts warranty, Titan knows it's a jungle out there, but we’re ready to guide you through the thick of it.

Rear Panel Ports

1 x DisplayPort 1.1a

1 x Optical SPDIF Out Port

2 x USB4 Type-C Ports (40 Gb/s)

4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)

2 x USB 3.2 Gen1 Type-A Ports

2 x RJ-45 LAN Ports

1 x RJ45 Dedicated IPMI LAN Port

1 x Line Out Jack (Gold Audio Jack)

1 x Microphone Input Jack (Gold Audio Jack)

Internal I/O Connectors

Onboard USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C )

1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports

Other Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

5 x 4-pin Chassis Fan header(s)

1 x W_PUMP+ header(s)

Storage related

2 x M.2 slots (Key M)

2 x SlimSAS connector(s)

4 x SATA 6Gb/s ports

1 x VROC Key connector

Miscellaneous

1 x COM Port header

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x LN2 Mode jumper

1 x M.2 slot (Key E)

1 x ReTry button

1 x Safe Boot button

1 x SPI TPM header (14-1pin)

1 x Start button

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

BMC Related

1 x BMC switch

1 x VGA switch

1 x BMC LAN fixed IP switch

1 x IPMI switch

2 x Q_PSU switch

2 x PSU SMBus header

1 x Front panel location LED header

1 x Location button header

1 x VPP_I2C header

1 x Micro SD card socket

1 x BMC_T_SENSOR header

1 x BMC LED

1 x Location LED

1 x Message LED header

Dimensions:

20.75" x 9" x 21.25"

Availability:
Usually Ships in 2 to 3 weeks

Product Code:
A7-Pantera
