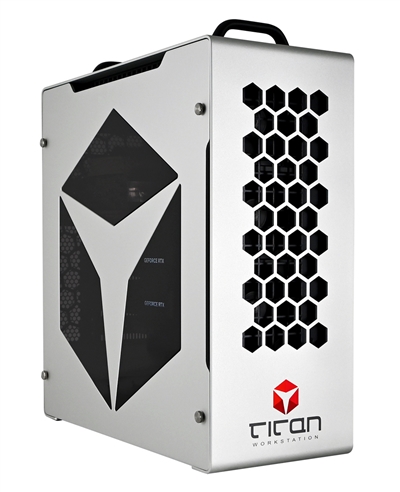

TITAN W34 Octane - Intel Xeon W-3500 Series CPUs for Animation, 3D Rendering & Simulation Workstation PC up to 60 CPU Cores

Home > TITAN HPC Workstations > Workstations by CPU > Intel Xeon W-3500 Workstations - up to 60 Cores >

TITAN W34 Octane - Intel Xeon W-3500 Series CPUs for Animation, 3D Rendering & Simulation HPC

Alternative Views:

Starting Price: $5,845.00

Availability: Usually Ships in 3 to 4 Weeks
Product Code: W34-OCTANE

Lead Time:

CORE COMPONENTS

Case:

Case Fans:

CPU / Processor:

CPU Cooling:

Motherboard:

Memory:

Power:

Operating Systems:

VIDEO & AUDIO

GPU Configuration Set 1:

GPU Configuration Set 2:

Video Capture:

Sound Card:

Monitor 1:

Monitor 2:

M.2 NVMe STORAGE

M.2 NVMe Drives Set 1:

M.2 NVMe Drives Set 2:

M.2. RAID Setup:

SSD & SATA STORAGE

Hard Drives Set 1:

Hard Drives Set 2:

SATA-SAS RAID Controller:

SATA RAID Setup:

Storage Bay Configuration:

COMMUNICATIONS

NetWork:

USB Ports:

Wireless:

Mouse / Keyboard:

WARRANTY

Assembly:

TAA Compliance:

Warranty:

Extra Care:

FREE Gift:

Qty:

Technical Specs

Support

TITAN W34 Octane
Intel Xeon W-3500 Series CPUs for Animation, 3D Rendering & Simulation HPC up to 60 CPU Cores

Technology
The W34 Octane workstation sports the amazing Xeon W Sapphire Rapids CPU. The base model pushes single-threaded performance with a 4.2Ghz Turbo Boost clock.

You get twelve threads and, thanks to water-cooling, you’ll see those high boost clocks more often than not.

If you are heavily focused on multithreaded CPU rendering then you can opt for as many as 56 cores and 112 threads, with a boost clock well over 4.5Ghz.

All Intel Xeon W models comes with 112 GPU lanes for serious video card graphics computing.

Deep Learning
By default, the W34 ships with a 16-core W5-3525 CPU, but you can spec it up all the way to 56-cores for customers who are in a real hurry to get their Deep Learning work done.

Deep Learning is notoriously hard on RAM and storage, so W34 Octane comes with no less than 64GB of blasting fast OC 6400Mhz DDR5 memory, but you can expand that to a whopping, big-brain 2TB of RAM.

The primary system SSD is a 5000MB/s read, 4800MB/s write PCIe 4 drive, and mass storage is provided by an enterprise-grade 4TB mechanical drive from Seagate.

Massive Computing
These high-performance components are supported by a 1000W 80 PLUS Gold certified PSU with a PCIe Gen5 VHPWR connector, so you’ll be read for any GPU.

We’ve designed the W34 for CPU-based AI work, so the NVIDIA Quadro T1000’s main job is to provide reliable mainstream GPU power, but not GPU-accelerated deep learning.

However, you can have up to four GPUs of your choice (with our recommended PSU for your configuration) to turn this into a GPU deep learning beast.

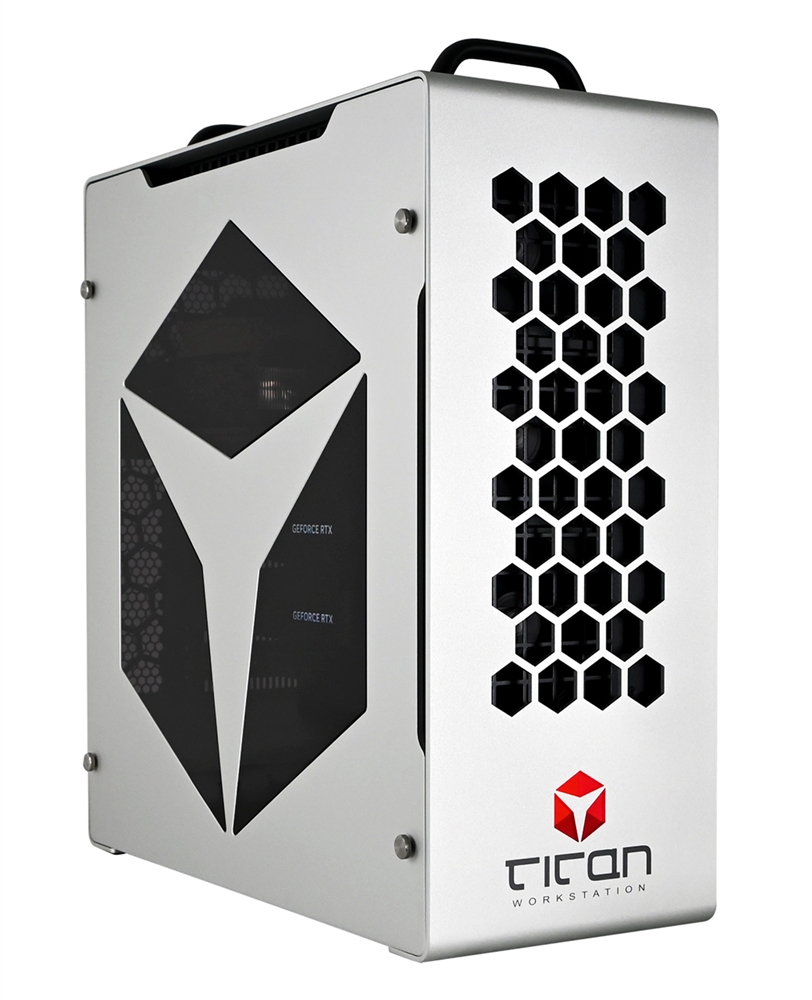

All of this power is wrapped up in your beautiful exclusive WS Chariot chassis, and supported by our legendary lifetime labor and technical support warranty, with three years of parts replacement.

External Connectors:

Rear

- 2 USB4 Thunderbolt™ 4 Type-C
- 2 USB 3.2 Gen2
- 4 USB 3.2 Gen1
- 2x Marvell AQUANTIA® 10 GbE LAN
- 1x Intel® i225LM 2.5 GbE LAN

Front

-4 x USB 3.0 Ports

-1 x Audio In / Out

Dimensions:

20.75" x 9" x 21.25"

Availability:
Usually Ships in 2 to 3 weeks

Product Code:
W34-OCTANE
