Ideal for Entry-Level CAD & Design Work

Whether you’re working in AutoCAD, SolidWorks, Revit, or similar applications, this system delivers the performance you need for smooth workflows, responsive modeling, and efficient multitasking.

The RS-C461 is specifically built as a professional-grade workstation for CAD/CAM, 3D modeling, and design applications.





Key Performance Features

Intel Core Ultra 5 250K PLUS Processor (18 Cores)
Enjoy strong single-core speed for modeling tasks and multi-core power for rendering and multitasking, all in a modern, efficient architecture.

NVIDIA Quadro A1000 8GB (Professional GPU)
• Built for CAD, BIM, and 3D workflows
• Smooth viewport performance even with complex models
• Certified drivers for stability and compatibility
• The A1000 is a proven entry-level workstation GPU that handles most CAD workflows smoothly and reliably.

32GB DDR5 6000MHz Memory
Run multiple applications, large assemblies, and design files without slowdowns.

2TB Gen5 NVMe SSD (Ultra-Fast Storage)
Blazing-fast load times and quick file access for large CAD projects.


Designed for Real Work

• Compact, professional Micro-ATX workstation design
• Built and tested in the USA for long-term reliability
• Wi-Fi 6E + Bluetooth connectivity
• Windows 11 Pro pre-installed and ready to go
• Ready to ship within 24 hours




Who This Workstation Is For

• Entry-level CAD users and students
• Engineers and designers starting professional workflows
• Small businesses needing reliable design systems
• Anyone upgrading from consumer PCs to a certified workstation


The Bottom Line

The Titan RS-C461 delivers the perfect balance of performance, stability, and value for CAD users. With professional Quadro graphics, fast DDR5 memory, and a modern Intel Core Ultra processor, it’s an ideal starting point for serious design work—without the high cost of advanced systems.






Specifications

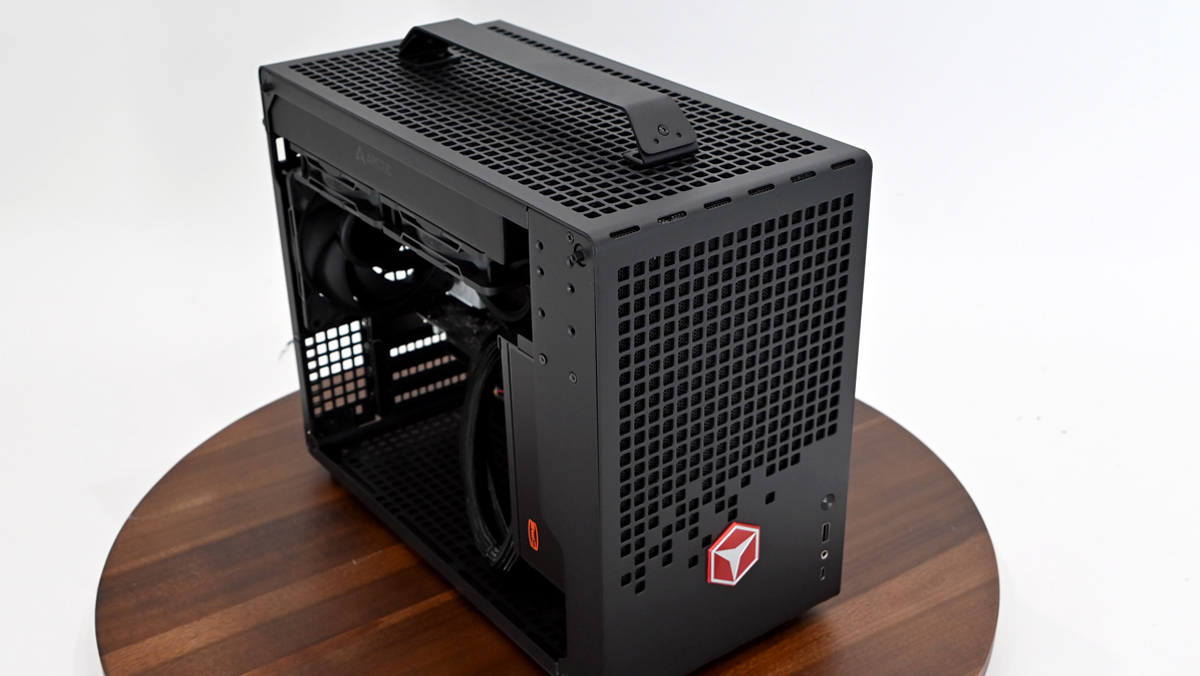

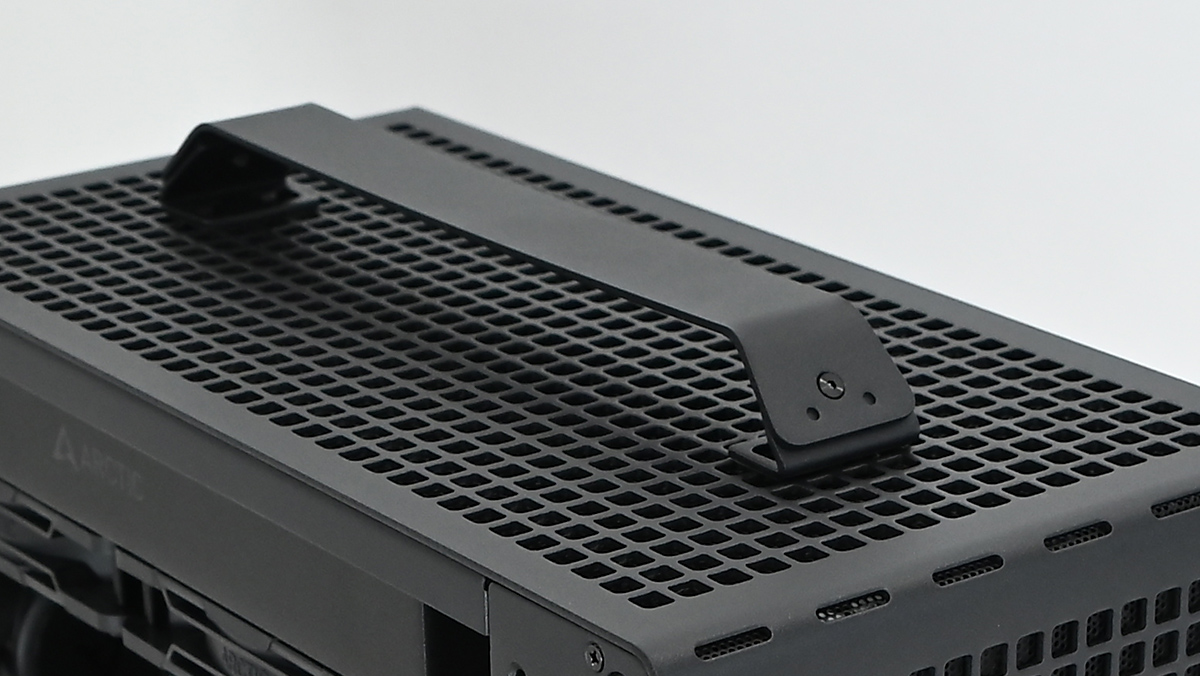

Case: Z20 Black Micro-ATX Chassis | Detachable Carrying Handle
CPU / Processor: Intel Core Ultra 5 250K PLUS Arrow Lake 3.3 GHz (5.3 GHz Turbo Boost) 125W 30MB L3 (18 Cores)

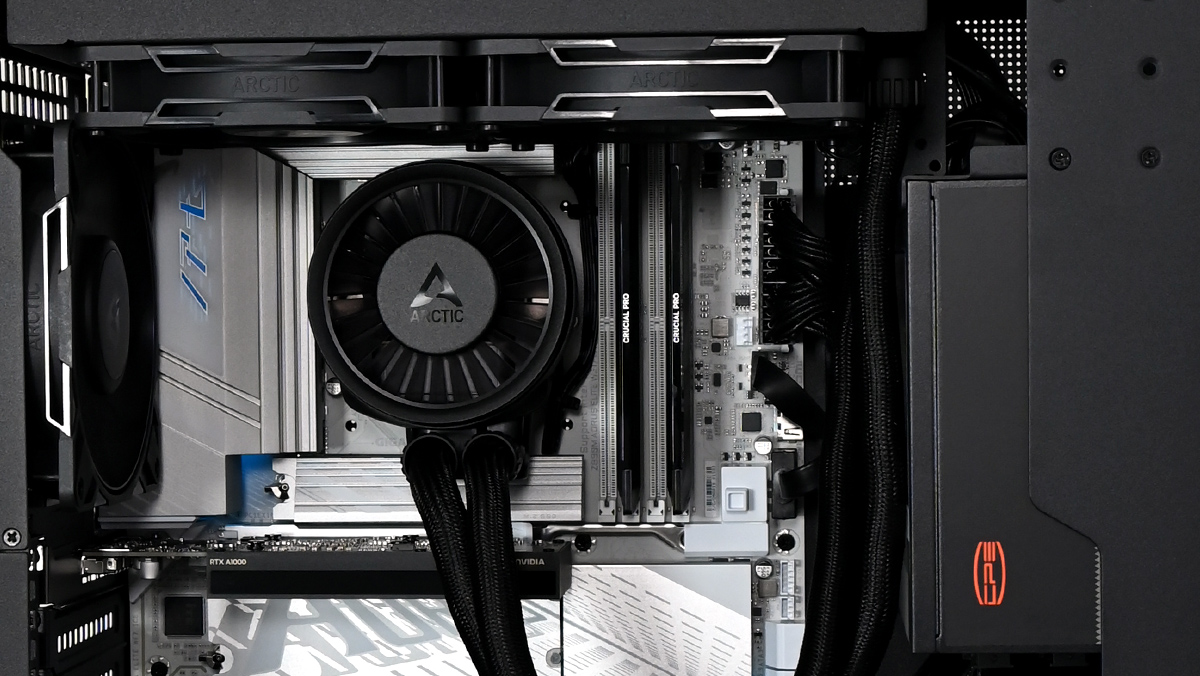

CPU Cooling: 240mm AIO CPU Liquid Cooler with dual CPU Fans
Motherboard: Z890M AORUS ELITE WIFI7 ICE DDR5 Micro ATX Intel Motherboard
Memory: 32GB (2 x 16GB) 288-Pin DDR5 6000Mhz Desktop Memory
Power: 650W - 80+ GOLD - 110V to 240V - Modular Power Supply
Operating System: Microsoft Windows 11 Pro 64-bit - Includes Original DVD Media
Video Graphics Cards (GPUs): 1x NVIDIA Quadro A1000 8GB GDDR6 Workstation Video Card
M.2 NVMe Drives Set 1: 1x SAMSUNG 9100 PRO 2TB M.2 NVMe Gen5 SSD - read/write 14700/13400 MBps
Mouse and Keyboard: Includes wired USB Mouse and Keyboard Combo
Wireless: 802.11ax Wi-Fi 6E Module + Bluetooth 5.3
TAA Compliance: Compliant - All Titan Computers are proudly assembled in the USA and at our Miami, FL location
Warranty: Lifetime Labor & Technical Support + 2 Years Parts Replacement

Dimensions:
Z20 CAse: 15.04” x 7.80” x 13.19”

Availability:
Ready to Ship

Product Code:
RS-C461-CAD
