Titan S899 - Dual 5th/4th Gen Intel Xeon Scalable CPUs + 10x GPUs Server PC for AI / Deep Learning HPC up to 128 Cores - Supermicro SYS-421GE-TNRT

At the heart of the Titan S899 are dual 4th Gen Intel Xeon Scalable Processors. With options extending up to 112 CPU cores, this powerhouse is tailored for the most intense computing tasks. The default configuration features two Intel Xeon Silver 4410Y SP processors, each with 24 cores and 48 threads, providing a strong foundation for demanding applications.

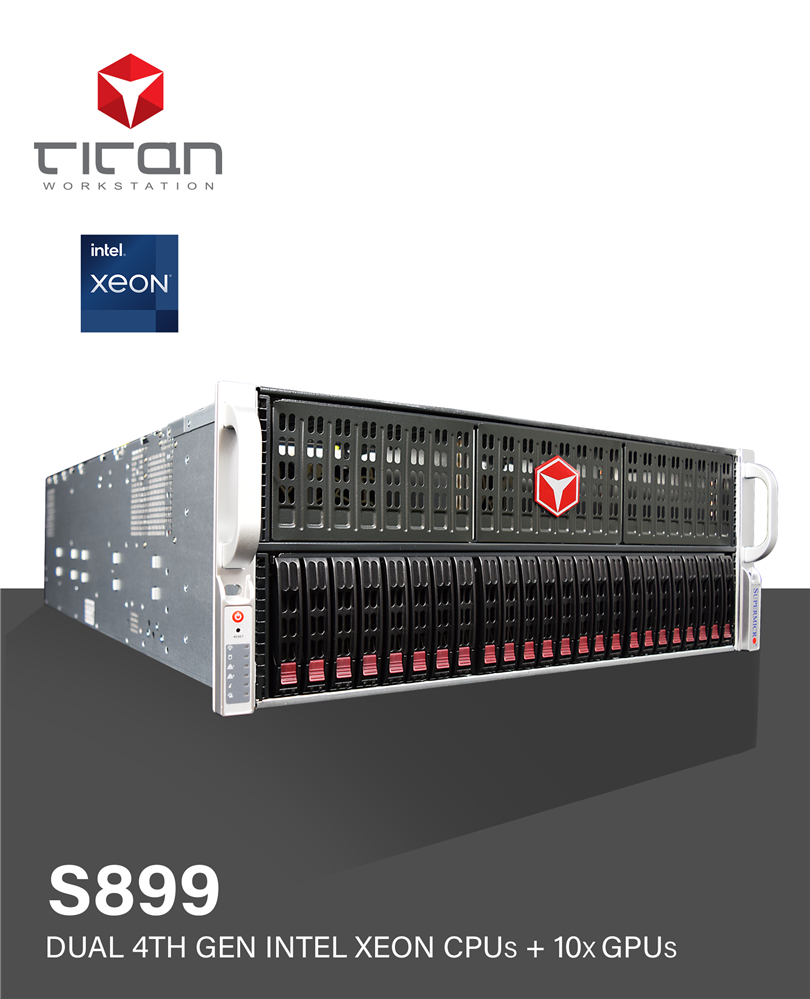

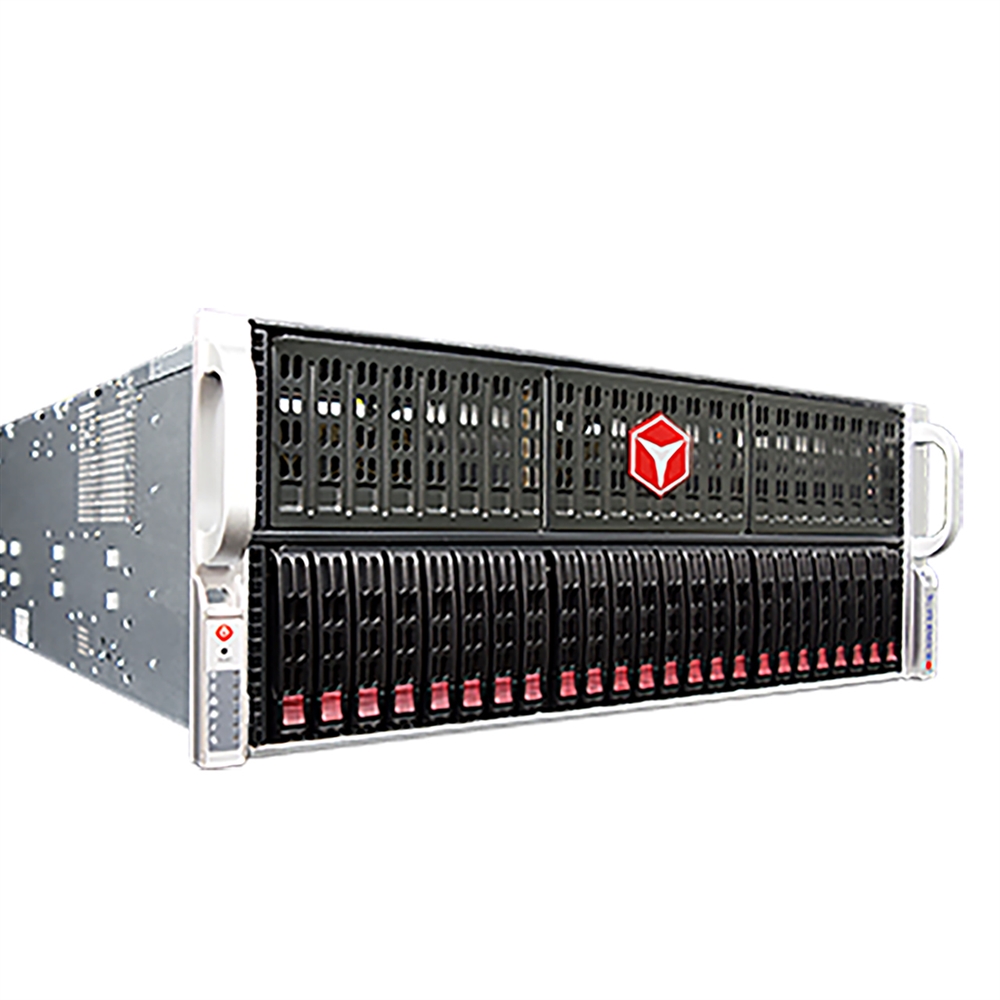

The S899 is housed in a Supermicro SYS-421GE-TNRT 4U Rackmount Server Chassis, crafted for GPU computing. Its robust structure is both functional and aesthetically commanding, showcasing the strength and reliability Titan Computers is known for.

For storage, the S899 comes equipped with a 1TB M.2 NVMe PCIe 4.0 x4 SSD, ensuring fast data access and transfer rates. The memory capacity is just as impressive, starting at 64GB of 288-Pin DDR5 SDRAM 4800 ECC Server Memory and expandable up to a colossal 4TB.

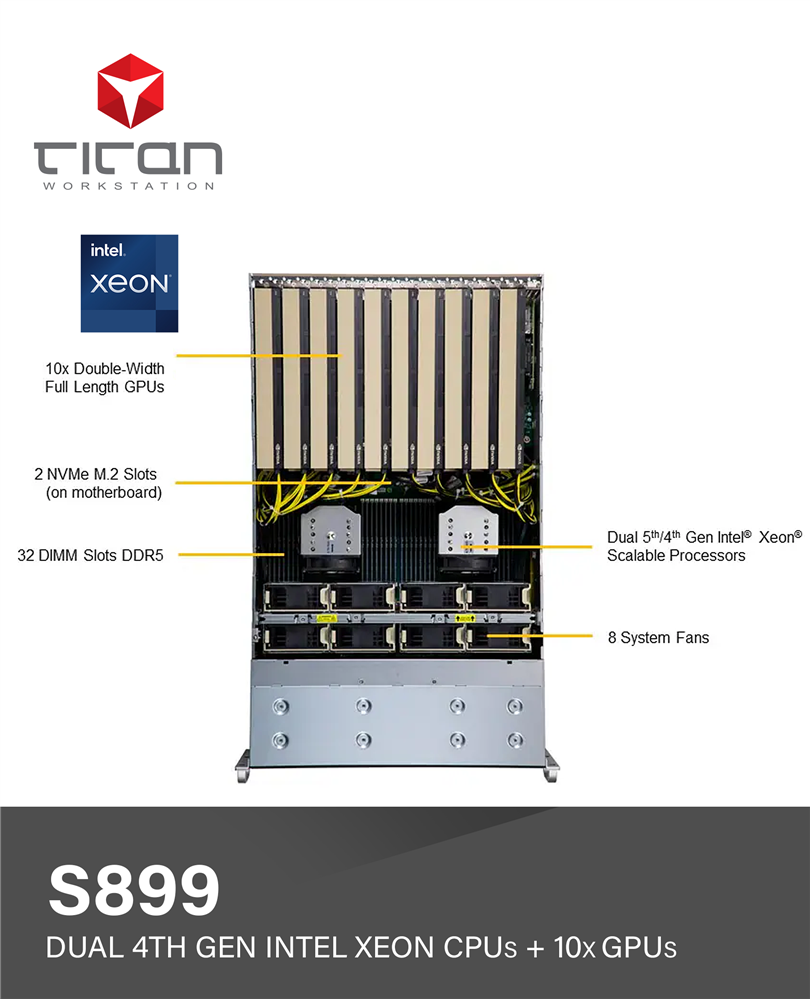

Although it includes onboard ASPEED AST2600 BMC Graphics, the S899's true graphical prowess is unlocked with its capacity to house up to 10 NVIDIA Video Cards. This feature makes it an ideal solution for GPU-intensive tasks. Powering this beast are four 2700W Redundant Power Supply, Titanium Level (96%+), ensuring reliability and efficiency.

The S899 boasts a range of external connectors including USB 3.0 ports, dual RJ45 by Intel, a dedicated IPMI LAN port, and a VGA port. Its expansive dimensions provide ample space for customization and upgrades.

In line with Titan Computers' commitment to quality, the S899 comes with lifetime labor and technical support, alongside a two-year parts replacement warranty, with options to extend up to four years.

With AI technology and massive parallel computations becoming more and more important in almost every type of workflow, a GPU HPC like the S899 offers near limitless expansion for the future, and ultimate performance today.

Default Configuration:

Case: Supermicro SuperChassis SYS-421GE-TNRT 4U Rackmount Server Chassis for GPU Computing

Motherboard: Supermicro X13DEG-OA - Dual Socket LGA-4677 Motherboard

Processor: 2x Intel Xeon Silver 4410Y SP 2.0GHz (3.9GHz Turbo) 150W 30MB Cache (24 Cores / 48 Threads) up to 112x Cores Intel Xeon CPU Max Capable

OS Hard Drive: 1TB M.2 NVMe PCIe 4.0 x4 SSD - read/write 5000/4800 MBps

Memory: 64GB (4 x 16GB) 288-Pin DDR5 SDRAM 4800 ECC Server Memory up to 4TB

Audio: Optional

Power Supply: 4x 2700W Redundant (2+2) Power Supplies; Titanium Level (96%+)

Video: Onboard ASPEED AST2600 BMC Graphics

Wireless: Optional

External Connectors:

Rear
- 2 x USB 3.0 Ports
- 2 x RJ45 by 2 x Intel
- 1 x RJ45 Dedicated IPMI LAN port
- 1 x VGA Port ASPEED AST2500

Dimensions:
7" (H) x 17.2" (W) x 29" (D)

Download Motherboard Latest Drivers:

GPU SuperServer SYS-421GE-TNRT
