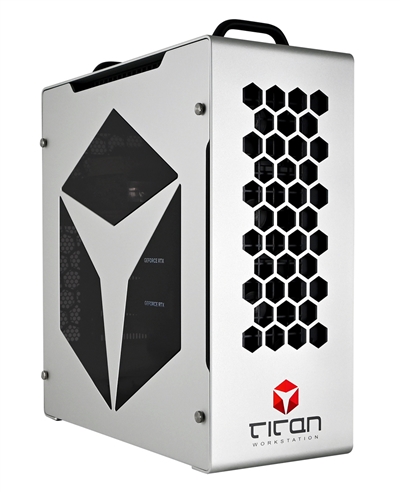

Titan W799 - Dual 5th Gen Intel Xeon Scalable Processors Workstation PC up to 128 cores
Titan W799 - Dual 5th Gen Intel Xeon Scalable Processors Workstation PC up to 128 cores



Starting Price: $6,475.00



Availability: Usually Ships in 2 to 3 Weeks
Product Code: W799

CORE COMPONENTS

Case:


Case Fans:


CPU / Processor:


CPU Cooling:


CPU Thermal Compound:


Motherboard:


Memory:


Power:


Operating Systems:

VIDEO & AUDIO

Video Card / GPU:


NVIDIA NVLink:


Sound Card:


Monitor 1:


Monitor 2:

STORAGE

M.2 NVMe Drive:


M.2 NVMe Drive 2:


SATA Drive 1:


SATA Drive 2:


SATA Drive 3:


SATA Drive 4:


SATA-SAS RAID Controller:


RAID Setup:


CD/DVD:


Media Card:

COMMUNICATIONS

NetWork:


USB Ports:


Wireless:


Mouse / Keyboard:

WARRANTY

Assembly:


Warranty:


Extra Care:


FREE Gift:


Qty:
Technical Specs Support


Titan W799

Dual 5th Gen Intel Xeon Scalable Processors Workstation PC up to 128 cores

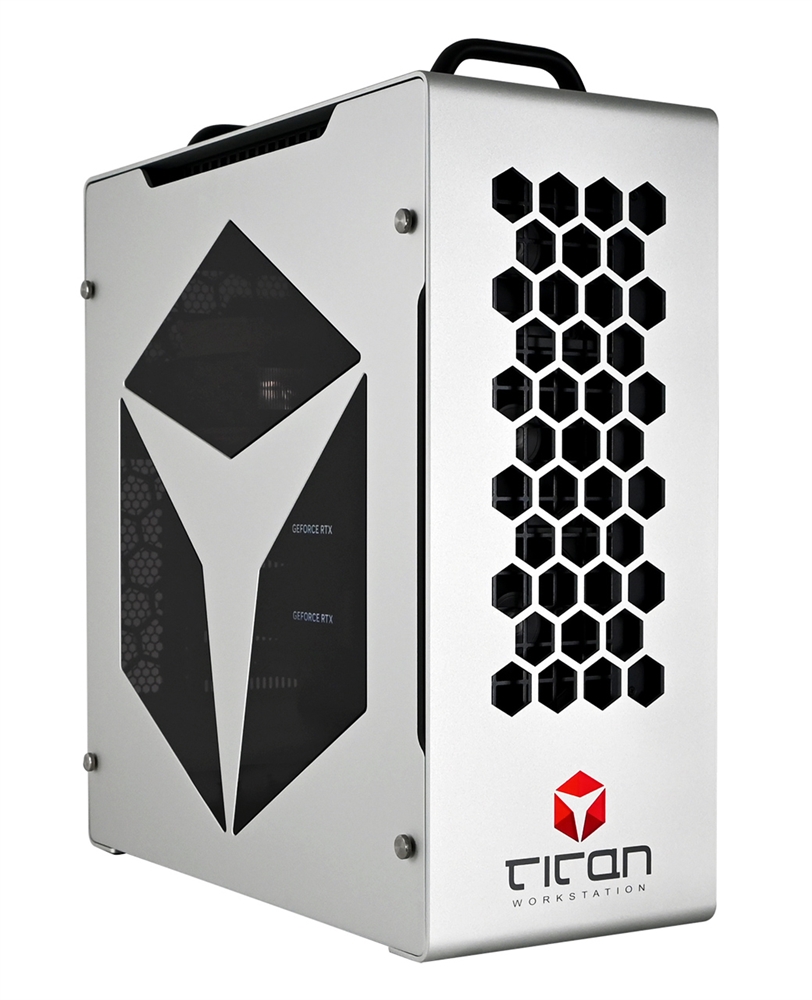

The Titan W799 is securely housed in our uniquely designed Titan Chariot Case, an elegant blend of anodized silver aluminum and steel. This USA-designed mid-tower case not only offers a visually pleasing aesthetic with its cut-out logo window, but is also designed for optimal airflow and efficient cooling, ensuring that the W799 operates at peak performance even under the most strenuous computational loads.

At the heart of the Titan W799 are its dual Intel Xeon Silver 4410Y SP processors, each running at a base clock speed of 2.0GHz and capable of reaching up to 3.9GHz with Turbo Boost. These power-efficient processors come with a 150W TDP and a 30MB cache, cooled by two state-of-the-art Supermicro SNK-P0090AP4 CPU coolers, specifically designed for quiet operation while maintaining optimal temperatures. You have the option of taking this workstation all the way up to 112 cores, using the latest Xeon Platinum CPUs.



Powerful Base
Supporting these powerful processors is the SUPERMICRO X13DAI-T motherboard, a dual-socket platform engineered for maximum performance with Intel Xeon processors. This high-performance motherboard is paired with 64GB of ECC Server-grade DDR5 SDRAM operating at 4800MHz (PC5 38400), providing high-speed memory solutions for data-intensive applications. For users with extreme demands, there's the capacity to add significantly more memory - up to 4TB!

The Titan W799 is powered by a 1000W 80+ GOLD Certified Power Supply, ensuring efficient and stable power delivery to all components. Storage is handled by a rapid 1TB M.2 NVMe PCIe 4.0 x4 SSD with read/write speeds up to 5000/4800 MBps, coupled with a 4TB Seagate Enterprise SATA III hard drive, providing fast data access and ample storage for your data and software.




Connectivity
With onboard dual RJ45 Gigabit Ethernet LAN ports and a comprehensive array of USB 3.0 ports, the W799 offers robust connectivity options, facilitating data sharing and collaboration with colleagues.

The Titan W799 is more than just a workstation; it's a commitment to your success. Professionally assembled with a meticulously handcrafted assembly, complete OS & Drivers installation, and a rigorous 72-hour components burn-in test, the W799 is ready to take on any challenge. It is backed by lifetime labor & technical support and a 2-year parts replacement warranty, ensuring the Titan W799 is always ready to propel your professional workload to wherever you need to take it.


Default Configuration:

Case: Titan WS Chariot - Anodize Silver Aluminum & Steel E-ATX Mid Workstation Tower - Designed in the USA

Motherboard: SUPERMICRO X13DAI-T Dual Socket LGA-4677 Workstation Motherboard

Processor: 2x Intel Xeon Silver 4410Y SP 2.0GHz (3.9GHz Turbo) 150W 30MB Cache (24 Cores / 48 Threads)

CPU Cooling: 2x Supermicro SNK-P0090AP4 Low Noise CPU Coolers

OS Hard Drive: 1TB M.2 NVMe PCIe 4.0 x4 SSD - read/write 5000/4800 MBps

Storage Hard Drive: 4TB - Seagate 7200 RPM 128MB Cache SATA 6.0Gb/s 3.5" Internal Hard Drive

OS: Windows 11 Professional 64-bit

Memory: 64GB (4 x 16GB) 288-Pin DDR5 4800 ECC Server Memory

Audio: Onboard Realtek ALC888S HD Sound Card

Power Supply: 1000W - 80 PLUS GOLD Certified Full Modular Power Supply

Video: NVIDIA Quadro T400 4GB GDDR6 Workstation Video Card

Lan: Dual LAN with Intel® i350 Gigabit Ethernet Controller

Wireless: TP-LINK TL-WN823N Wireless N300 Mini USB Adapter, 300 Mbps, w/ WPS Button - 300Mbps

Rear Panel Ports:
6 x USB 3.0 Ports
2 x RJ45 by Ethernet Connection for 10GbE
1 x VGA Port ASPEED AST2500 w/ 256MB

Storage Related:
2 x M.2 slots (Key M)
10 x SATA 6Gb/s ports

Dimensions:
19.50" x 9.25" x 20.10"

Availability:
Usually Ships in 2 to 3 weeks

Product Code:
W799
